aXtion VESA 100 MP Module with Neoprene Hand Strap
UniversalCWX125
Technical Specifications:
Part Specifications
Dimensions: 4.7” x 4.7” x 1.9
Weight: 0.44 lbs.
Part Specifications
Dimensions: 4.7” x 4.7” x 1.9
Weight: 0.44 lbs.

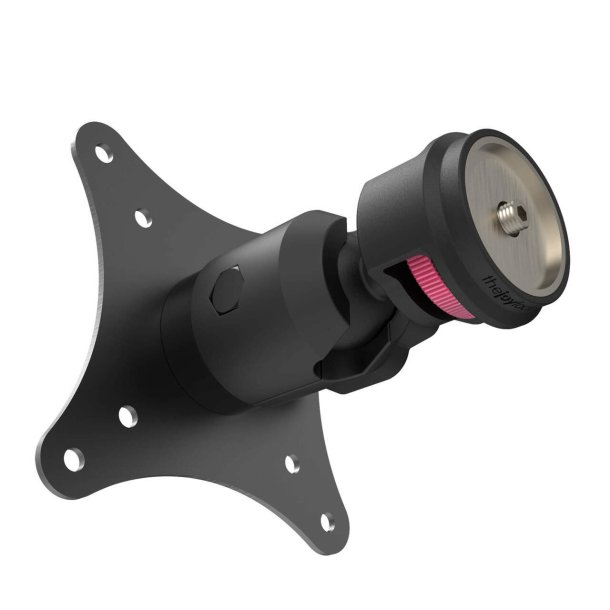

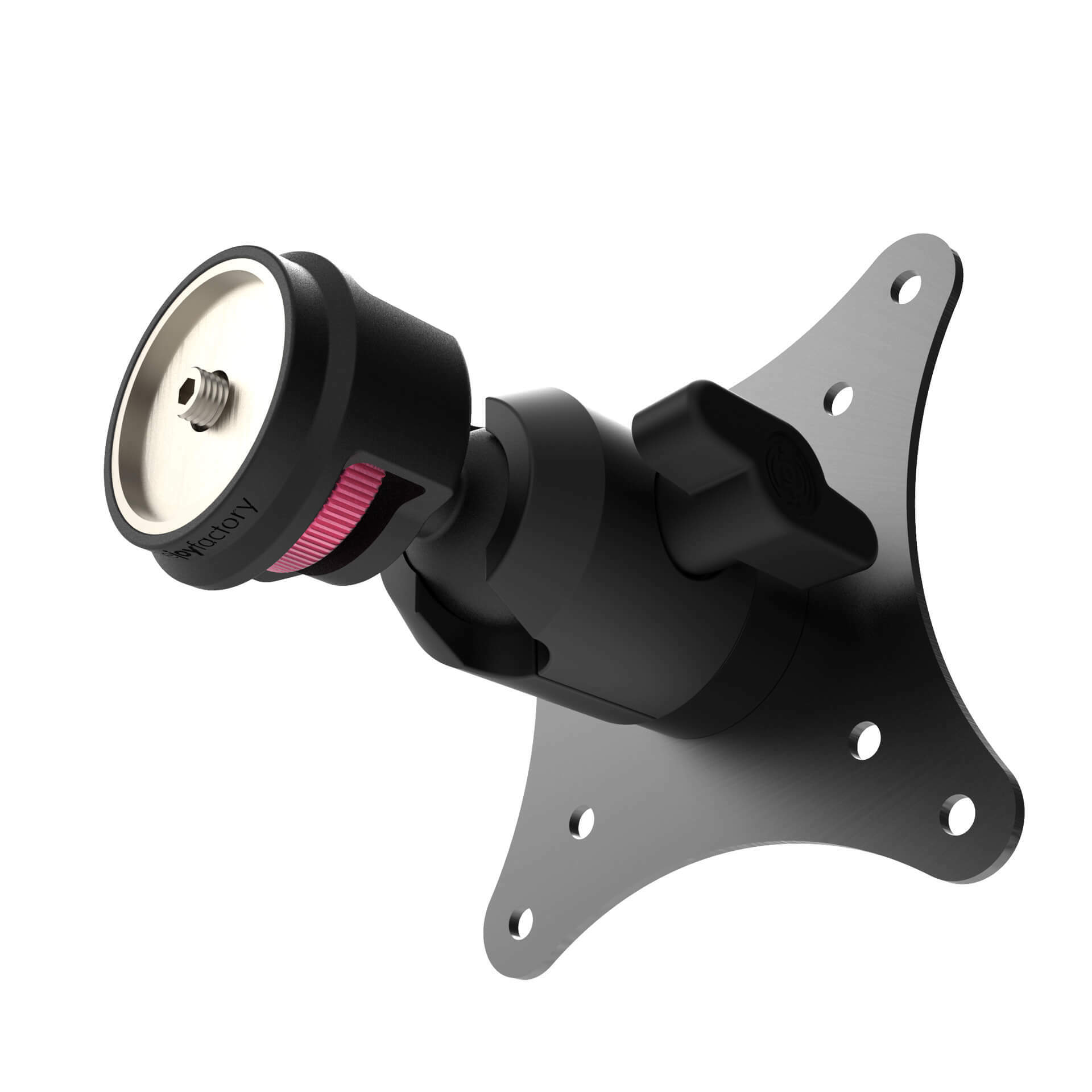

VESA 50 | 75 Mount with quick connect capability
The MagConnect VESA 50 | 75 Mount can be attached to a mount or cart with a standard VESA mounting configuration of 50 or 75. Users can expand the usage of existing equipment by adding this mount to make it MagConnect compatible. Once this mount is in place the setup can be used to mount a tablet using any of our MagConnect compatible cases.
The mount features MagConnect which allows a tablet case to magnetically attach and detach to the mount. It is equipped with a spherical ball joint offering near-infinite angle adjustment with levers that tighten around the ball joint to secure it in place. For healthcare environments a medical-grade version is available.
- VESA 50 & 75 compatible
- Allows users to expand the usage of existing equipment by making it MagConnect compatible
- Highly flexible joint allows up to 360 degree rotation
- Magnetic connection for quick mounting and dismounting
- Precision dial can be used to reinforce the tablet connection onto the mount
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| datasheet-MMU136.pdf | 881.11KB | Download | |
| qsg00086-vesa-mount-mmu136.pdf | 162.61KB | Download |
Mount Specifications
Material: Carbon Fiber
Weight: 0.54 lbs
Depth: 3.5"
Width: 3.5"
Height: 3.75"
Joints: 1" spherical joint at base
Connection: MagConnect
Material: Carbon Fiber
Weight: 0.54 lbs
Depth: 3.5"
Width: 3.5"
Height: 3.75"
Joints: 1" spherical joint at base
Connection: MagConnect
Got questions about us or our products?
Visit our FAQs
Looking for our product Quick Start Guides?
No Quick Start PDF for this Product at this time
MagConnect VESA 50 | 75 | 100 Mount (Silver)
UniversalMMU137S
Mount Specifications
Weight: 0.54 lbs
Depth: 3.5"
Width: 3.5"
Height: 3.75"
Joints: 1" spherical joint at base
Connection: MagConnect
Weight: 0.54 lbs
Depth: 3.5"
Width: 3.5"
Height: 3.75"
Joints: 1" spherical joint at base
Connection: MagConnect
VESA 75/100 HD AMPs Mount (26mm)
UniversalMVU232
Material: Aluminum Alloy
Weight: 1.41 lbs
Arm Length: 5.25" x 1
Ball Joint Size: 26mm (1")
Total Length: 7.12"
Mount Load Capacity: Up to 10 lbs
Tablet Connection: Universal
Base Specifications: Affixes via AMPs 30x38mm pattern
Product Overview Video
Weight: 1.41 lbs
Arm Length: 5.25" x 1
Ball Joint Size: 26mm (1")
Total Length: 7.12"
Mount Load Capacity: Up to 10 lbs
Tablet Connection: Universal
Base Specifications: Affixes via AMPs 30x38mm pattern
Product Overview Video
VESA 75/100 HD AMPs Mount (38mm)
UniversalMVU332
Material: Aluminum Alloy
Weight: 1.51 lbs
Arm Length: 5.25" x 1
Ball Joint Size: 38mm (1.5")
Total Length: 7.84"
Mount Load Capacity: Up to 15 lbs
Tablet Connection: Universal
Base Specifications: Affixes via AMPs 30x38mm pattern
Product Overview Video
Weight: 1.51 lbs
Arm Length: 5.25" x 1
Ball Joint Size: 38mm (1.5")
Total Length: 7.84"
Mount Load Capacity: Up to 15 lbs
Tablet Connection: Universal
Base Specifications: Affixes via AMPs 30x38mm pattern
Product Overview Video
